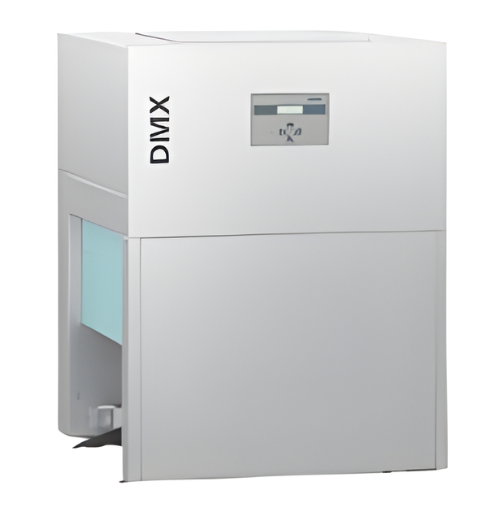

Winterhalter DMX Dryer Pass Through Washer

DMX – Dryer Module eXternal
Reusable systems are on the rise. But drying plastic cups and lids, bowls and other plastic containers can be a challenge due to the difficult drying properties of their material. To solve this problem, Winterhalter has developed a DMX dryer module in addition to a special combination of detergent and rinse aid. This ensures excellent and fast drying of plastic wash items. The result: dry plastic cups, bowls and other dishes that can be stacked dry inside each other after washing.

Standard Equipment

• DMX dryer module meets individual space requirements, being available as front loading, passthrough and corner version
• Upper fan provides continuous recirculated air flow for improved energy balance
• Additional air stream, with grease filter, dries the plastic wash items from below to ensure best drying result
• The double-walled housing made of stainless steel with curtains reduces noise emissions and heat losses and therefore lowers energy costs
• Rack detection starts the drying cycle automatically (adjustable time) and makes the operation very convenient
• Operating panel with display shows all important information and guides user through a simple operating concept
• Integrated ECO mode with low power consumption of <0.5 kW helps to reduce energy costs
• Variety of specially designed utensil racks

Product Description:
Number of programmes: 3
Basket dimensions: 500 x 500 / 500 x 600

External Dimensions:
Width: 680 mm
Depth: 745 mm
Height: 870 mm
Weight (net / gross): 83 / 95 Kg

Warranty: 2 year warranty on parts and labour
