$11,980.00 + GST

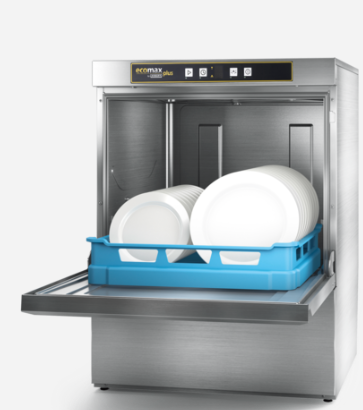

ECOMAX PLUS F515L

The fast and reliable dishwasher in compact design. Perfect for start-ups, small bars or restaurants

Basic model incl. detergent & rinse aid dispensers, drain pump and rinse pressure pump – 240V/50Hz/1 – 15amps

Product Description/ Features:

• Electronic control with digital temperature indication
• Flat surface of control panel
• 3 selectable wash cycles
• Rotating top and bottom wash system to distribute the wash water evenly over the dishes
• Indented nozzles prevent blocking
• Thermostop-function for guaranteed rinse temperatures
• Integrated self-cleaning cycle
• Stainless steel rinse arm and housing
• Removal of rinse arms without any tools
• Easy access to all parts
• Back flow prevention & Watermark Approved

PLUS Features

  1. • Deep-drawn wash tank – coved corners & no dirt traps
  2. • Double-walled housing and heat insulated front door
  3. • Tank strainer, coarse filter and pump suction casing
  4. • Counter- balanced door with damping control
  5. • Class leading lLoading height: 425 mm, for easy loading of large plates
  6. • Fully equipped with detergent and rinse aid dispenser, rinse pressure pump and drain pump

Product Specification :

STANDARD EQUIPMENT

• Plate rack P-18-12

• Universal flat rack B-00-07

• Plastic cutlery rack with 4 boxes 01-246175-1

• Electric plug & lead, water supply hose & drain hose

• Rear panelling

  1. Cycle times*:  60/120/180 sec
  2. Capacity per hour* :  up to 60 racks
  3. Wash/rinse temperature : approx – 60° C / min. 82° C
  4. Tank capacity : 10.6 l
  5. Fresh water consumption/rack  : 2.3 l
  6. Wash pump :  0.6 kw
  7. Heating booster/tank :  2.1 (6.2**) kw / 0.8 kw
  8. Total loading : 2.9 (7.7**) kw
  9. Rated voltage : 240V/50Hz/1 – 15amp (Opt – 415V/50Hz/3/N add.cost)
  10. Width/Depth/Height : 600/600/825 mm
  11. Loading height : 425 mm Rack size 500 x 500 mm

Required site water pressure : 0.8 to 6 bar (80-600 kPa)

* hot water connection **with 240V/50Hz/1



 ***Warranty: 12 months



Download Specification :
