FED GEX-H500BDD | Asber Tech Line | Pass-through Hood Type | Passthrough Dishwasher | Dishwasher

FED GEX-H500BDD | Asber Tech Line | Pass-through Hood Type | Passthrough Dishwasher | Dishwasher

$7,590.00 + GST

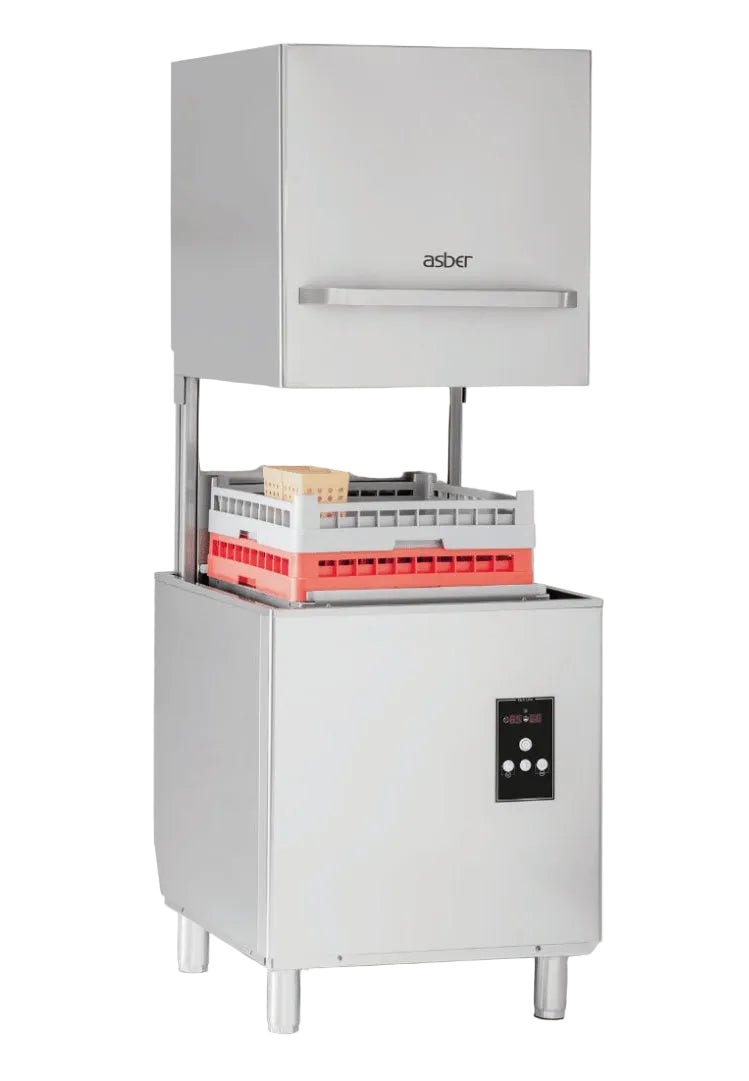

Asber Tech Line Pass-through Hood Type Dishwasher

Key Features

  • Electronic control panel.
  • 3 washing cycles of 90” / 120” / 180”
  • 40 Baskets/hour
  • Continuous cycle until manual stop.
  • Tank capacity: 45L / Heating power: 4.5 kW.
  • Boiler capacity: 7L / Heating power: 6.0 kW.
  • Wash pump power: 0.6 kW.
  • Rinsing consumption: 2.7L/rinse.
  • Upper and lower washing and rinsing arms.
  • Stainless steel washing arms.
  • Thermostop function.
  • Wash tank and boiler temperature display.
  • Built-in rinse aid dispenser and detergent dispenser.
  • Anti-backflow valve fitted.
  • Stainless steel filtering system.
  • Safety thermostat in the washing tank and the boiler.
  • Temperature adjustment: Wash at 60 ºC and rinse at 85 ºC.
  • Accessories supplied: 1 basket, 1 basket, and 2 baskets for cutlery
  • Door Clearance: 420mm
  • Watermark certified product sticker
  • This unit has a Drain Pump



Product Specification:



Product Condition New
New Product Yes
Width (mm) 675
Depth (mm) 675
Height (mm) 825 – 1758
Packing Width (mm) 735
Packing Depth (mm) 710
Packing Height (mm) 1650
Power 415, 11.1kW/3~N
Warranty Two Year Parts and Labour Warranty
