Hobart ECOMAX U704 Utensil Washer | Dishwasher | Passthrough | Compact Dishwasher | Hobart Dishwasher | Hood Type Dishwasher

$27,140.00 + GST

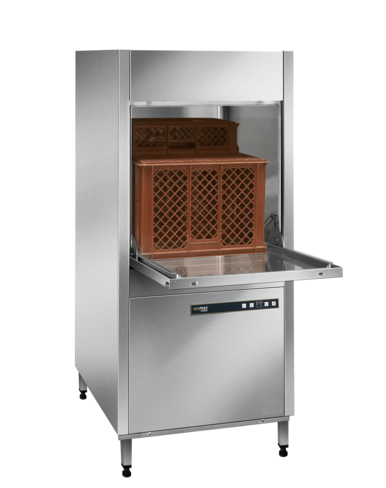

Hobart Ecomax U704 – Utensil Washer

The ecomax utensil washer, which perfectly cleans large items and heavily soiled utensils.

Product Description/ Features:

  • Single-button control with digital temperature indication
  • Rotating top and bottom wash system to distribute the wash water evenly over the dishes
  • Deep-drawn wash tank bottom, no hygiene problems with corners and edges
  • Thermostop-function for guaranteed rinse temperatures
  • Removal of wash and rinse arms without any tools
  • Easy access to all parts
  • Flat surface of control panel
  • Loading of high trays and pots: up to 630 mm loading height
  • 50 mm floor clearance
  • Made completely out of stainless steel
  • Tank covered with strainer made of stainless steel
  • Special hygiene programme for hygienic cleanliness
  • Refill signal monitors fill level of external chemical containers with optional suction lances



Product Specification :

STANDARD EQUIPMENT

  • Heater with thermostat control
  • Pressure pump
  • Electric cable, flexible water supply hose and drain hose

Technical data

Cycle times* 120 / 240 / 360 sec.
Rack capacity 30 cycles/h
Tank capacity 80 l
Water consumption 4.5 l/cycle
Wash pump 2.9 kW
Tank heating 3.3 kW
Booster loading – Standard 9.0 kW (400 V)
Total connected load – Standard 12 kW (400 V)
Rated voltage 400 / 50 / 3N
Width / Depth / Height 780 / 945 / 1,765 mm
Loading height 630 mm
Rack size 600 x 760 mm

* hot water connection ** 240V/50Hz/1

**Warranty: 12 months
